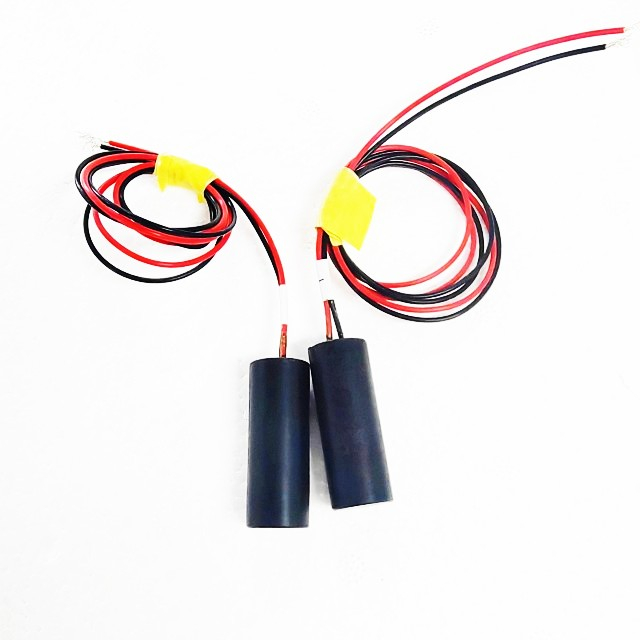

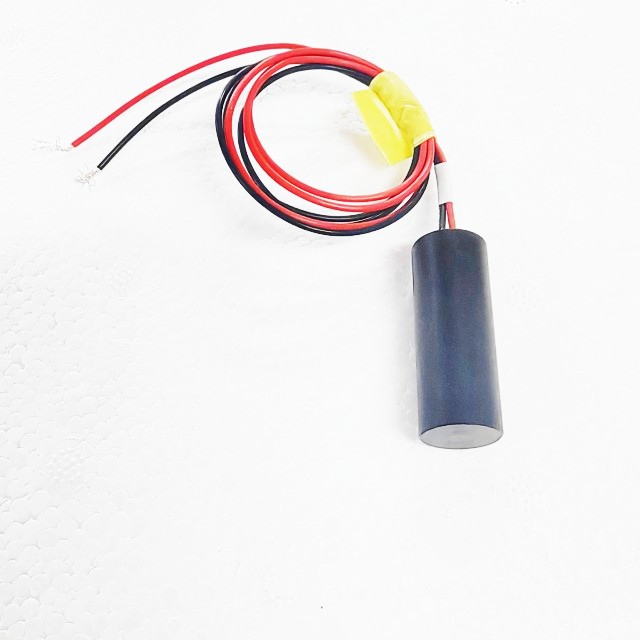

1hz-10khz Hydrophone Transducer Cylindrical Receiving Transducer for Seismic Arrays

1hz-10khz Hydrophone Transducer Cylindrical Receiving Transducer  for Seismic Arrays

We manufactures a broad range of acoustic transducers  (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .

Specification:

Sensitivity (dBv re 1 uPa @ 20 C) : -201

Sensitivity (V/Bar @ 20 C): 8.9

Capacitance (nF @ 20 C): 14.5

Frequency Response (+/- 1.5 dB) : 1 Hz to 10 kHz

Depth (meters):1732

Suggested application:Seismic arrays, ocean bottom cables, general purpose

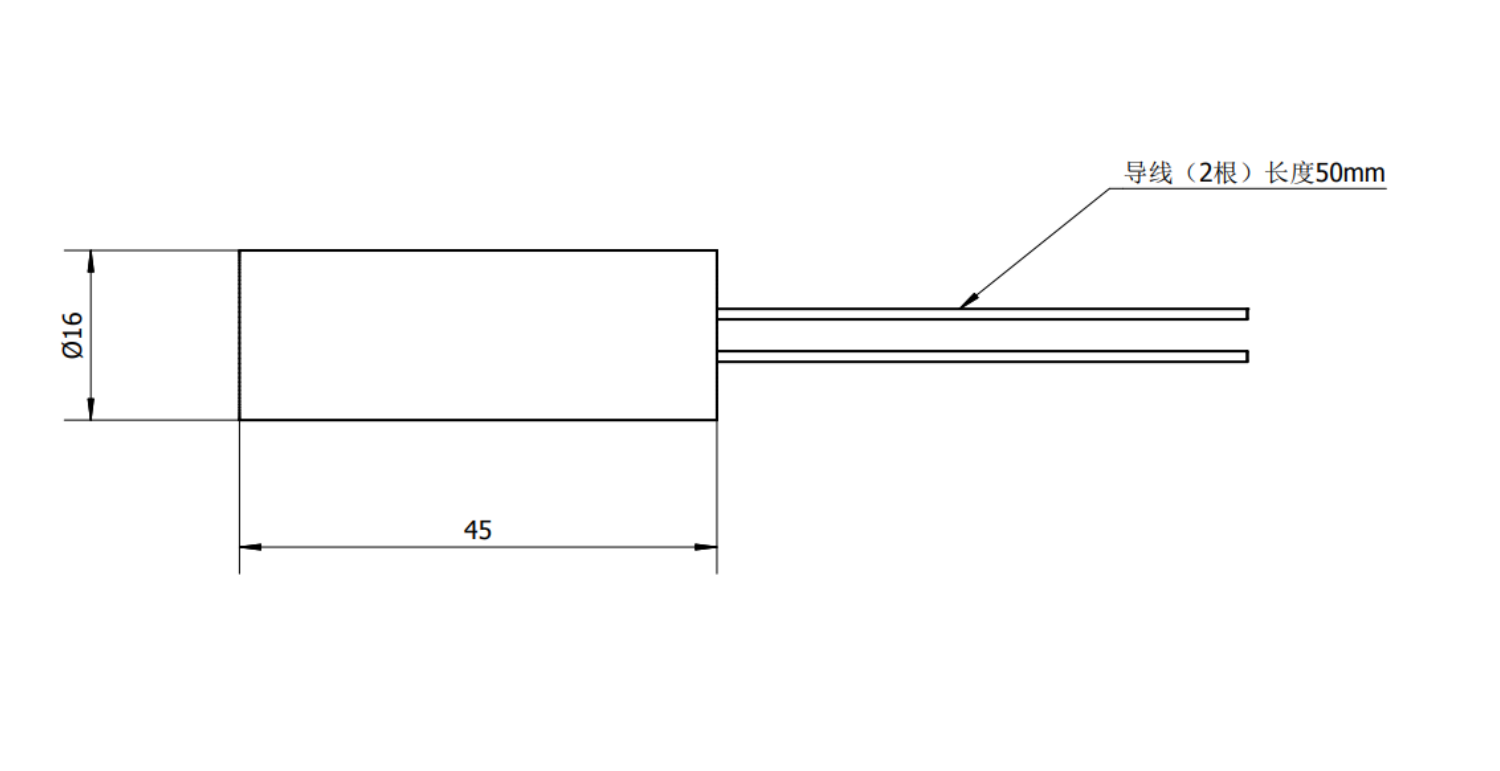

Drawing :
