1hz-480khz Ultra Broadband Spherical Hydrophone for Reference Measurement

    1hz-480khz Ultra Broadband Spherical Hydrophone for Reference Measurement

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

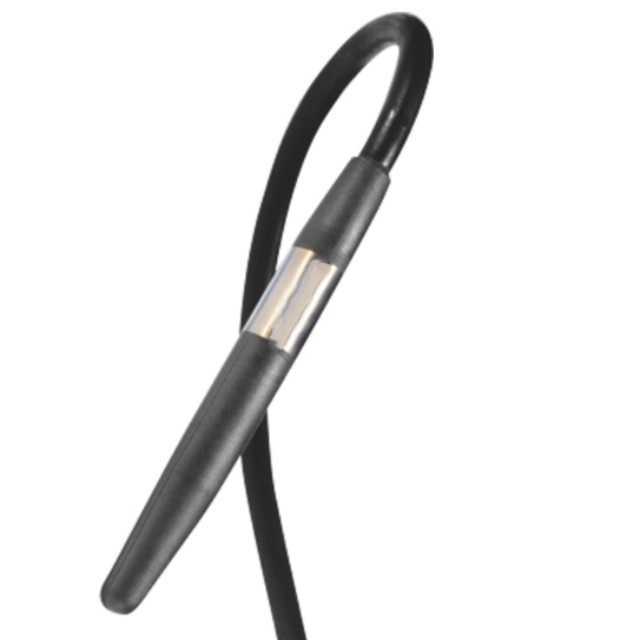

PH4034 broadband spherical hydrophone provides uniform omni-directional characteristics over a wide frequency range of 1Hz to 480kHz.The overall receiving characteristics makes the PH4034 an ideal transducer for making absolute underwater sound measurements up to 480kHz. The wide frequency range also makes the PH4034 perfect for calibration purposes, particularly in higher frequencies.

Key Features:

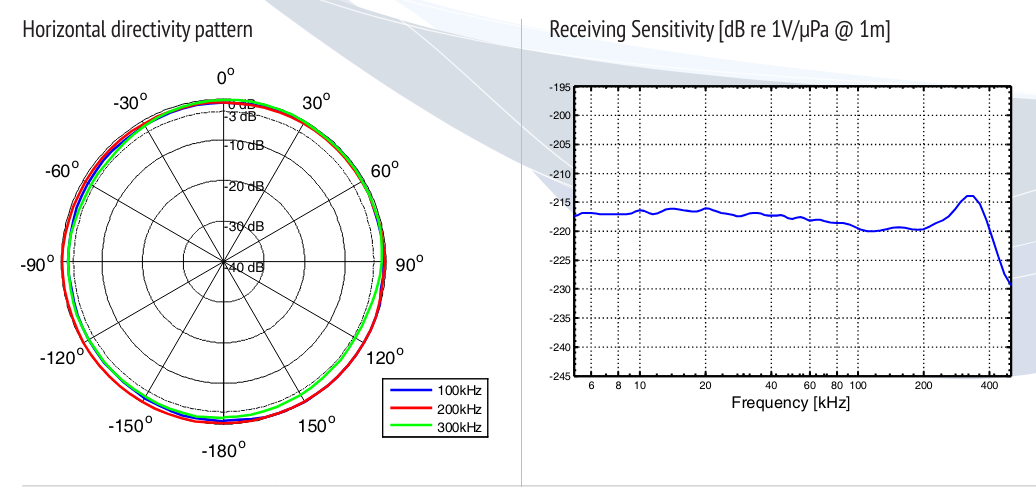

Omnidirectional in the full frequency range

Long term stability

Extreme Wide frequency range  Durable construction

Individually calibrated
