0.3kHz-10kHz Acoustic Transducer Underwater Projector Hydrophone

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

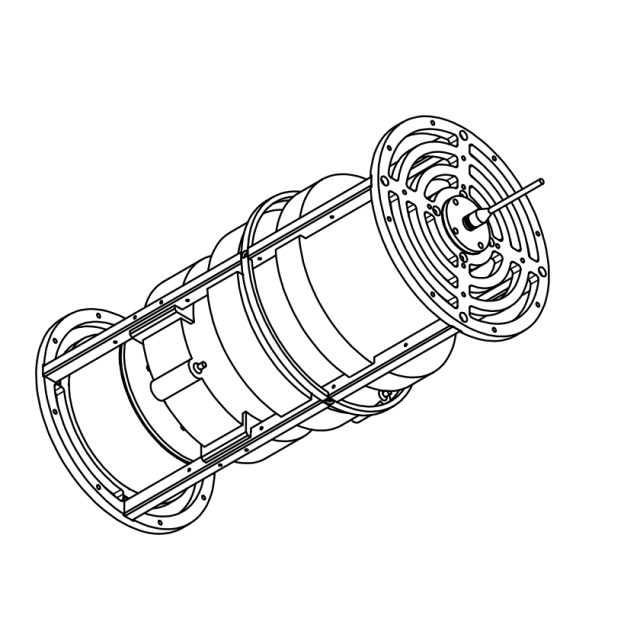

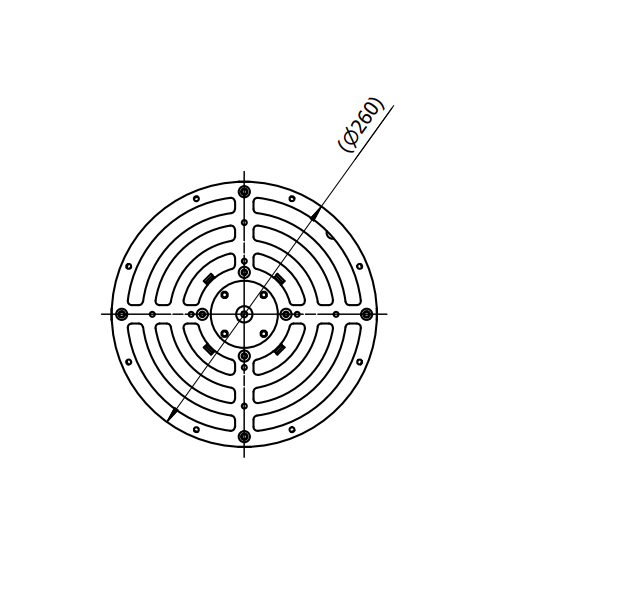

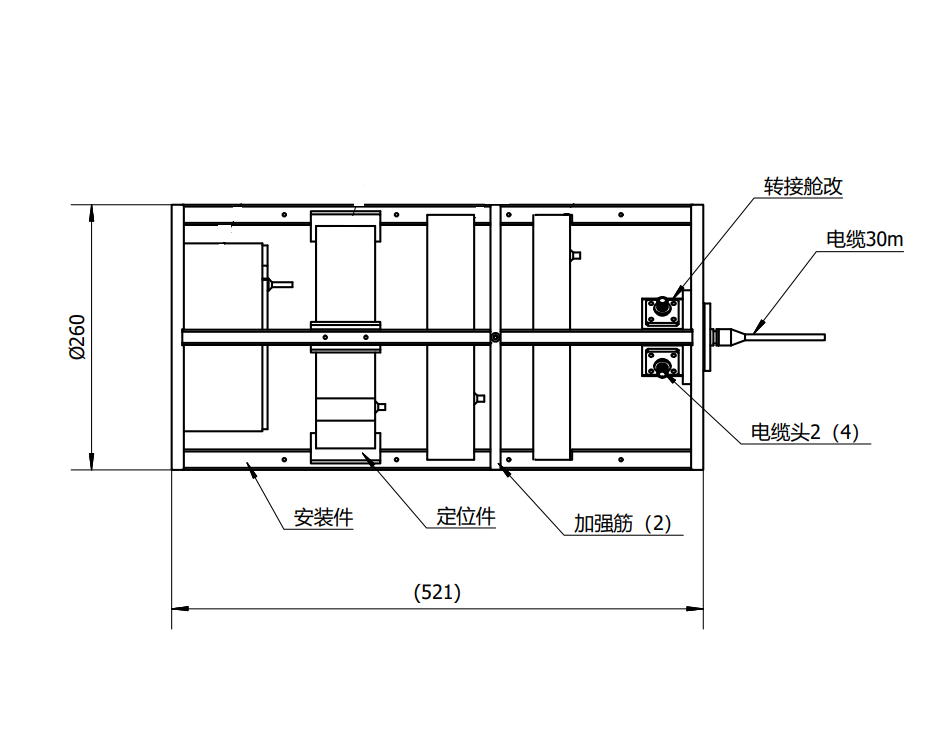

Dimension drawing :

Measurement content:

Measurement Details:

1.1. Operating Frequency Band: 0.3kHz-10kHz;

1.2. Sound Source Level:

0.3kHz-1kHz: ≥160dB, maximum not less than 180dB;

0.3kHz-10kHz

1kHz-1kHz: ≥170dB, maximum not less than 185dB;

2kHz-10kHz: ≥180dB.

1.3. Directivity: Horizontal omnidirectional, vertical opening angle not less than 85°.

1.4. Hydrostatic Pressure: 1MPa.

2. Measurement Data

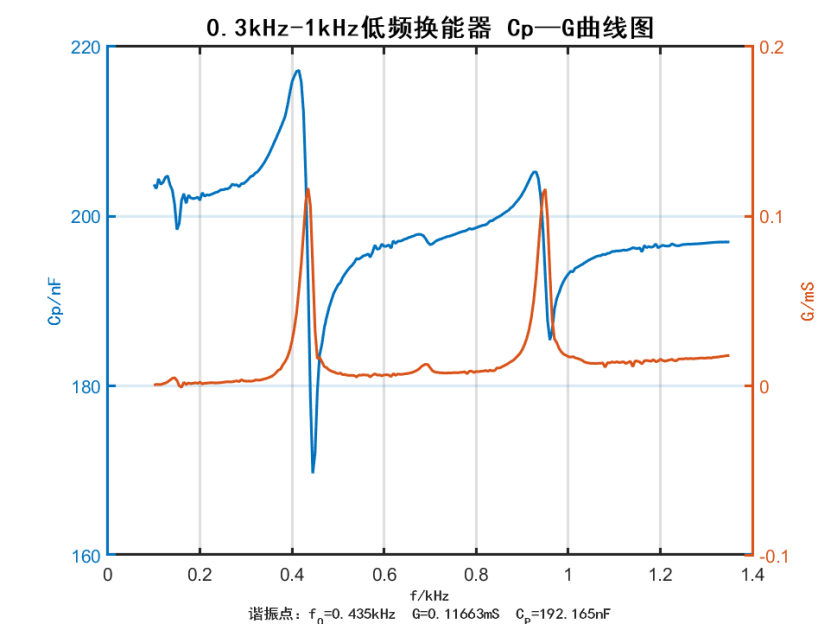

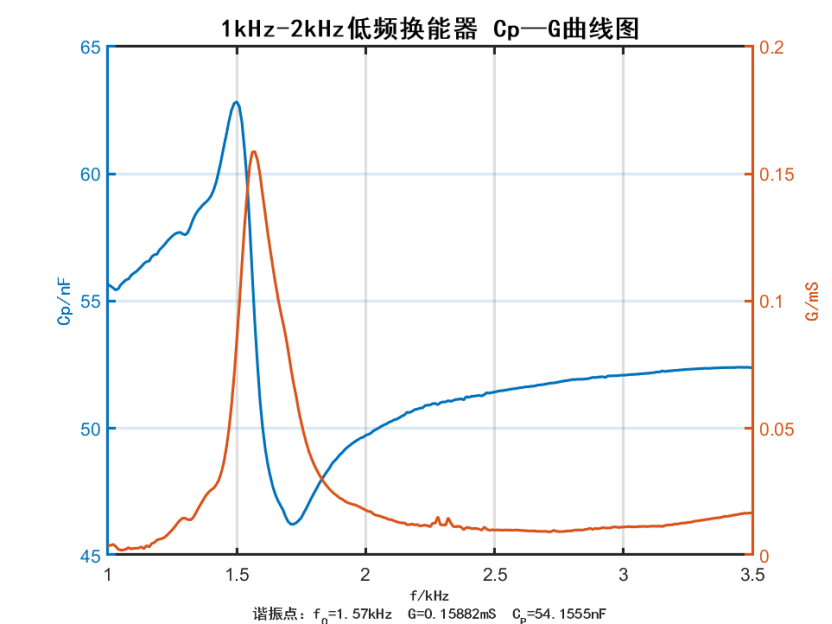

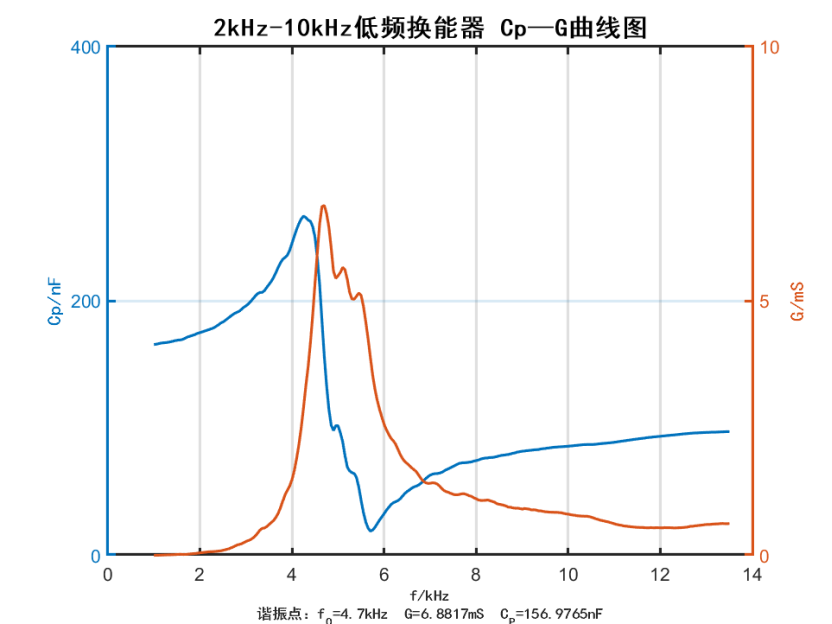

2.2.1. Conductance and Capacitance Curves

Sound source level

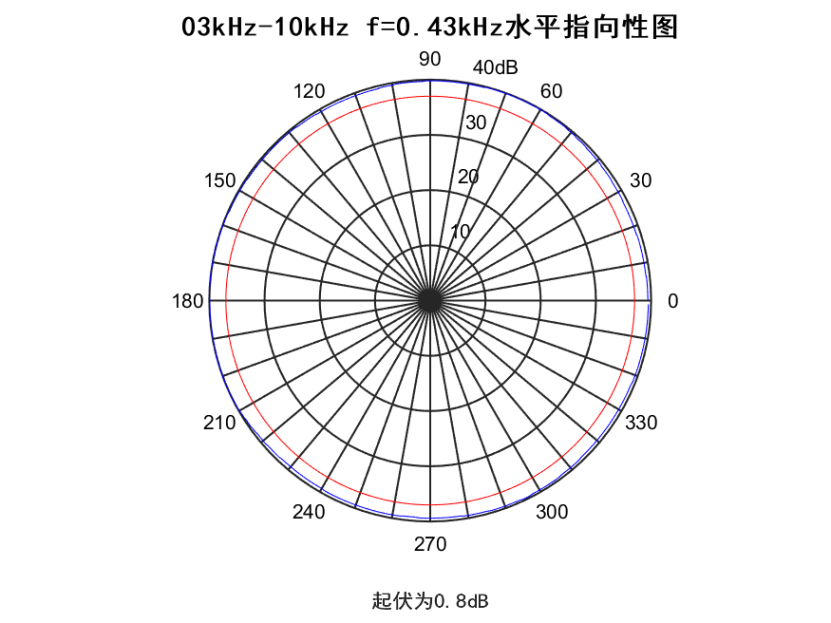

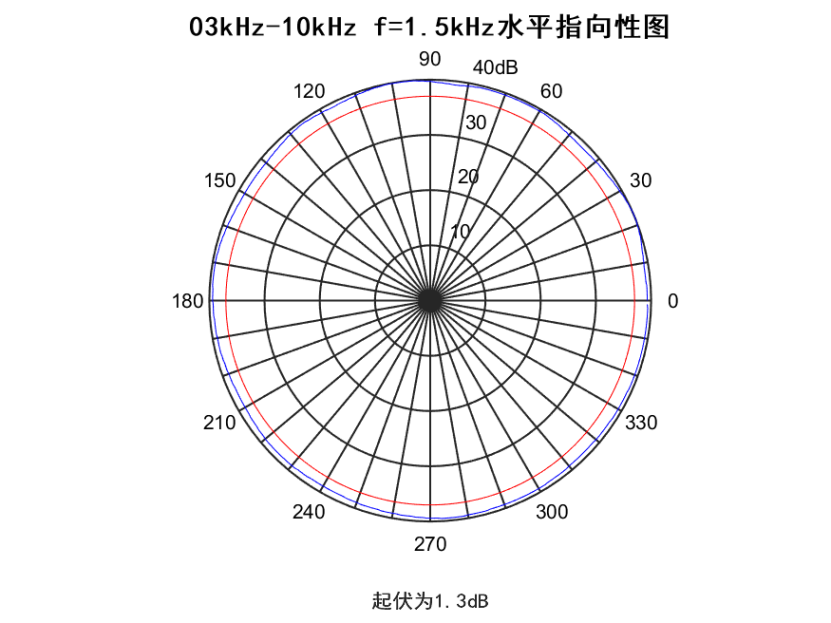

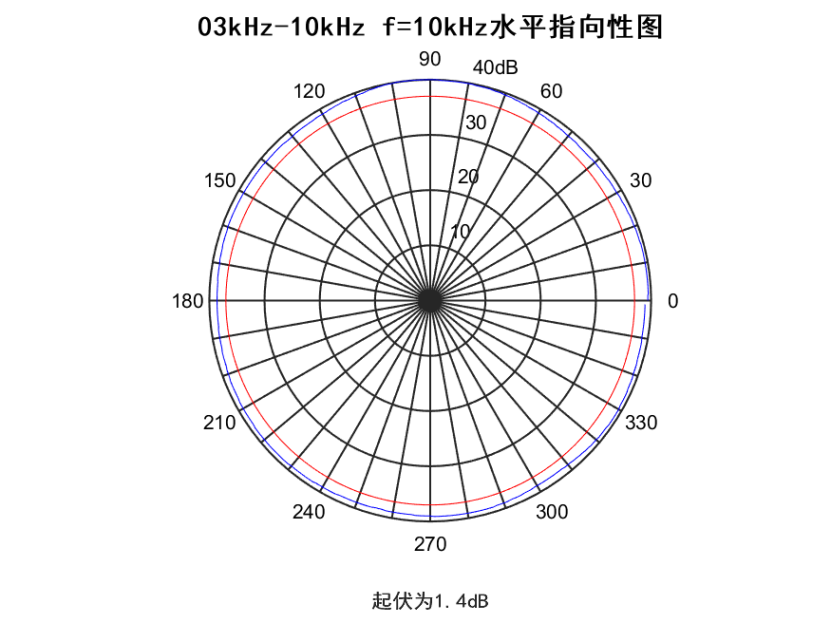

Horizontal directivity

.

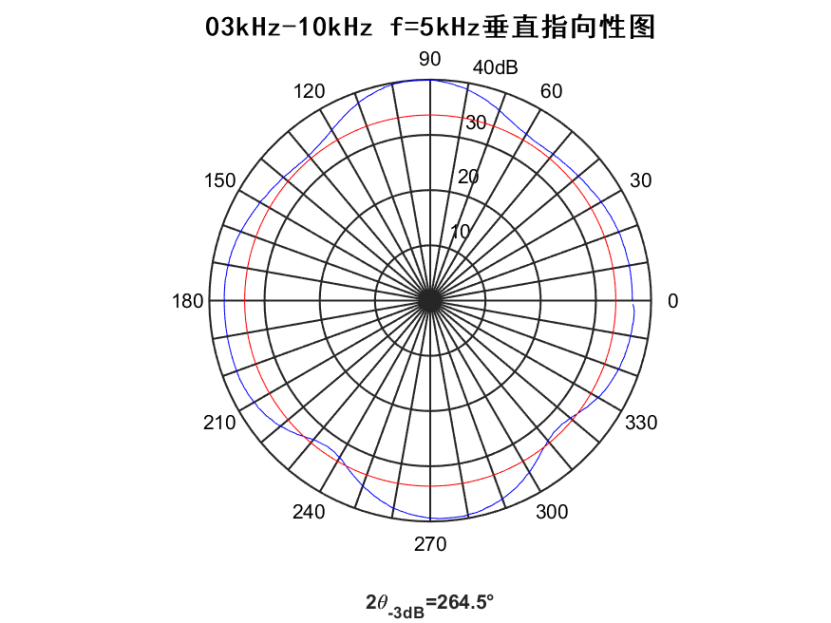

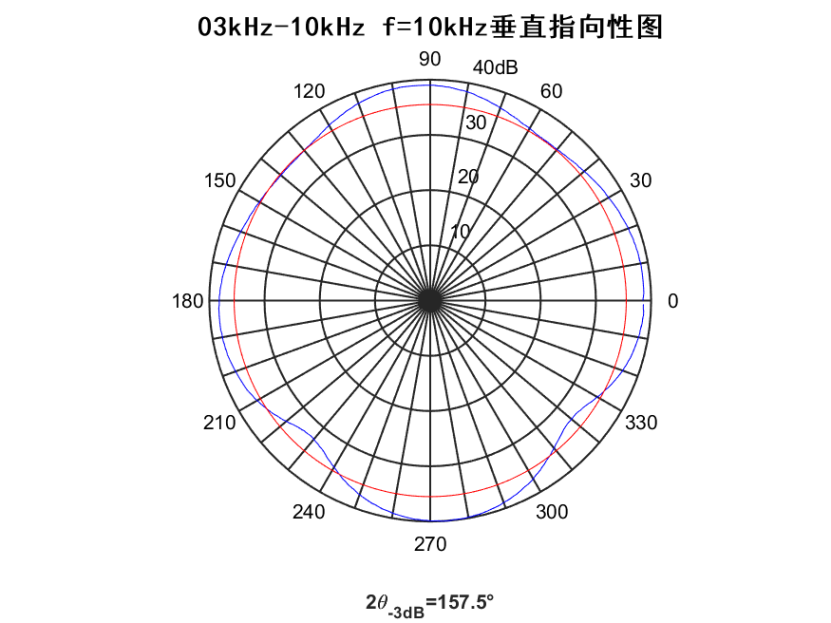

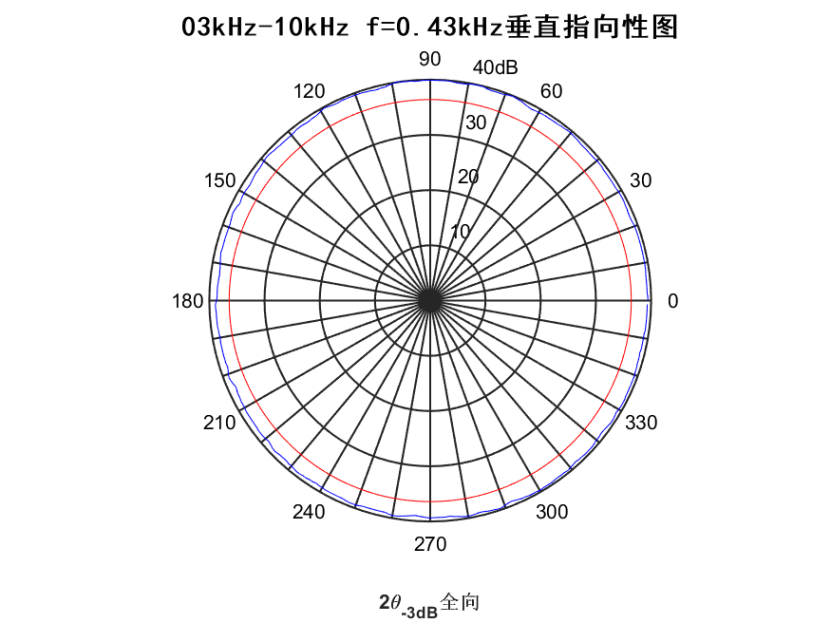

Vertical directivity

Hydrostatic Pressure Test:

After undergoing hydrostatic pressure tests at 1 MPa/1 hour, 1 MPa/0.25 hour, 1 MPa/1 hour, and 0 MPa/0.25 hour, the transducer's appearance remained intact and normal, and the insulation resistance between the transducer cores was greater than 200 MΩ.

Measurement Results:

All transducers met the technical specifications.
