SF-80
SF-80

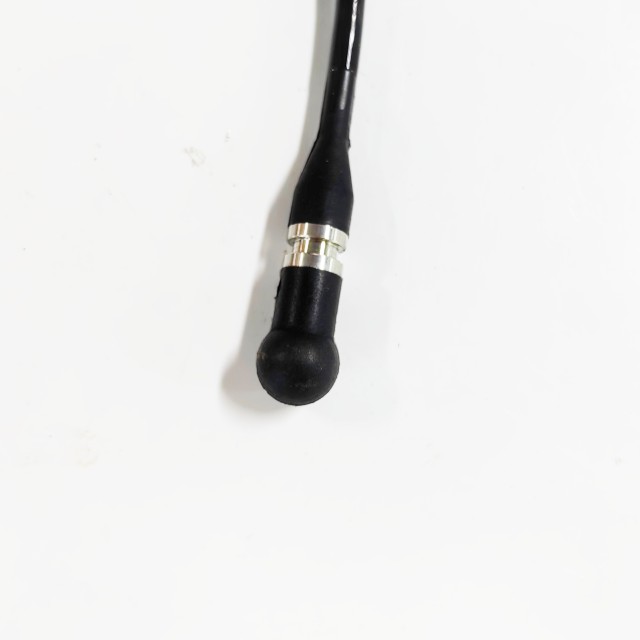

Stock 80Khz Spherical Transmitting Receiving Transducer Spherical Underwater Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Measurement content:
1. The frequency range for transmitting is 40kHz-170kHz2. Source level ≥191dB@80kHz
3. The frequency range for receiving is 10Hz-100KHz, and the best receiving range is 10Hz-60kHz
4. Horizontal omnidirectional
5. Vertical 2θ-3dB＞180°@100kHz
6. Water pressure resistance＞3MPa
7. Outer diameter of Transmitting for reference is S∮30mm
