H251S
H251S

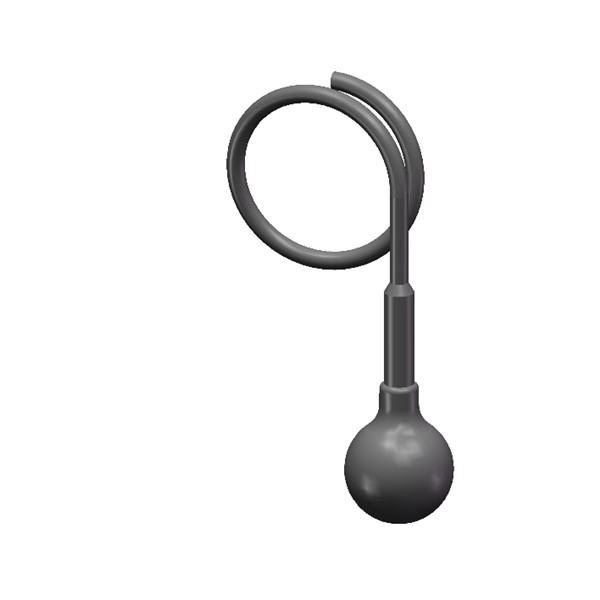

60kHz Omnidirectional Spherical Hydrophone for Underwater Projectors
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Technical Specifications | |
resonant frequency | 56kHz |
Operation bandwidth | 10Hz-60kHz |
receive sensitivity | ≥-200 dB re 1V/μPa |
horizontal directivity（3dB） | omnidirectional |
vertical directivity（3dB） | omnidirectional |
static capacitance | 40nF |
Physical Index | |
Size | Diameter 36mm |
Weight (air/water) | |
Cable (standard) | 5m，non-load-bearing，customizable |
Maximum working depth | 300m（standard） |
operating temperature | -5 to +40 °C |
storage temperature | -40 to +80 °C |
connector | Non - standard, can be customized |

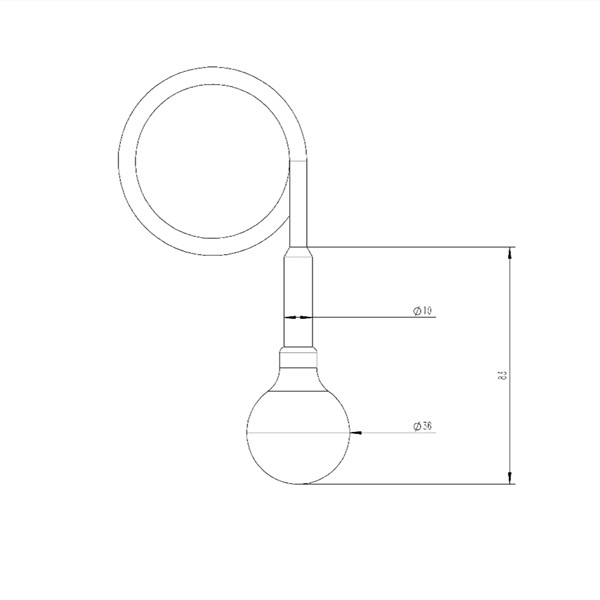

Dimensions :

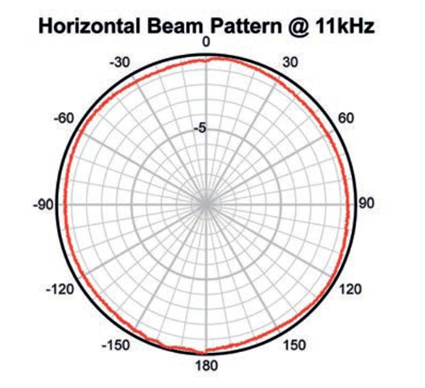

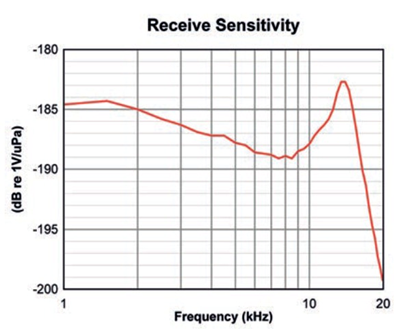

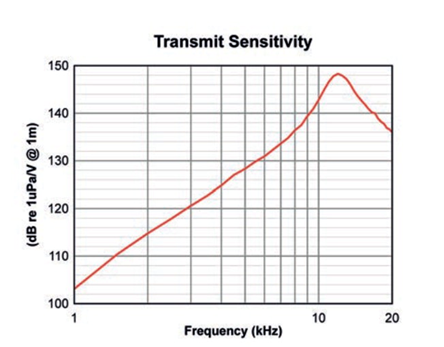

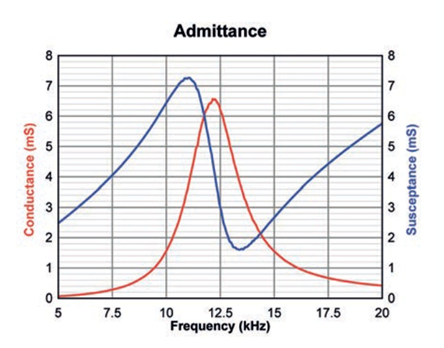

Performance Curve of Acoustics:
