QXFJ26K
QXFJ26K

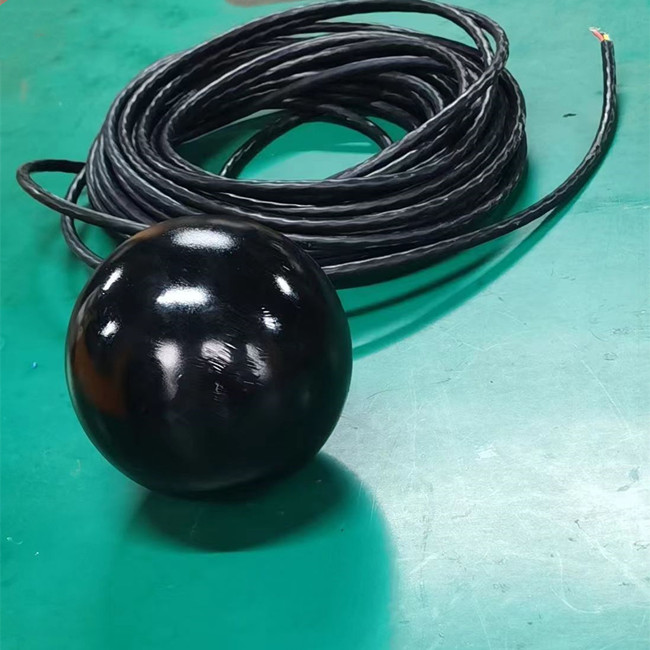

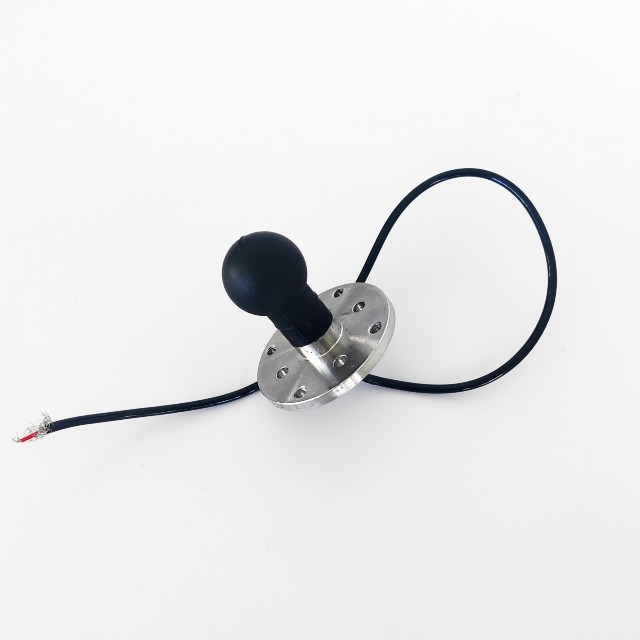

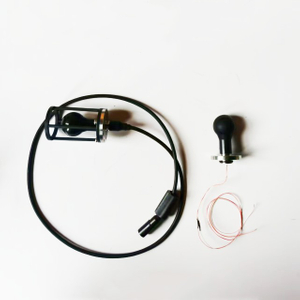

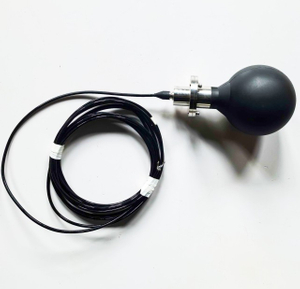

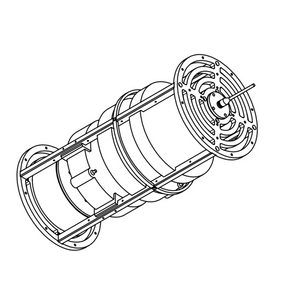

26khz Omni-directional Spherical Acoustic Transducers Receiving And Transmitting Transducer
Main Specifications | |
Resonant Frequency (Nominal) | 5k-9kHz |

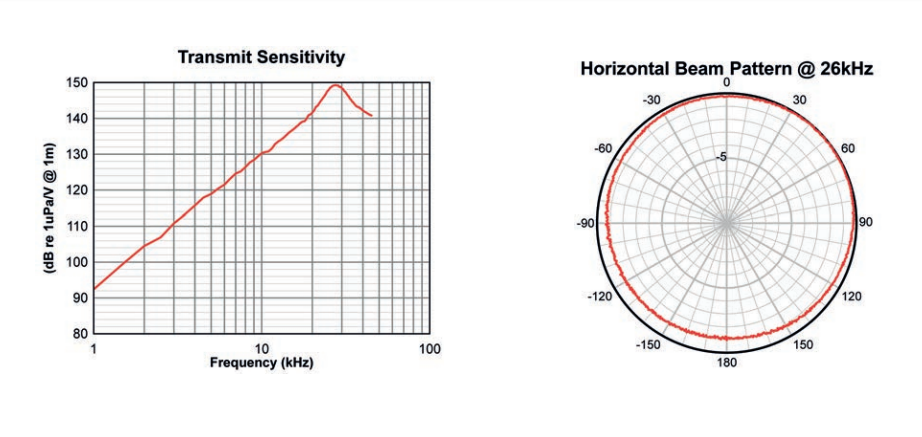

Transmitting sensitivity | 148 dB re 1µPa/V @ 1m
|
Capacitance at 1 kHz (with 10m cable)
| 42,000 pF
|

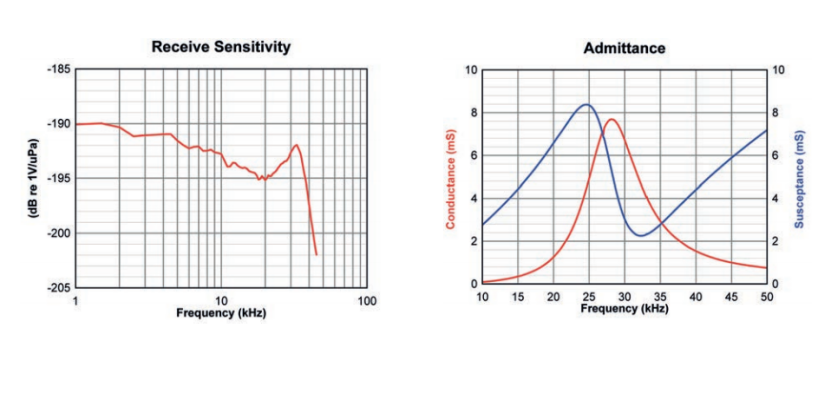

Receiving sensitivity | -190 dB re 1V/µPa
|
Transmit Voltage (Abs. Max
| 450 Vrms
|
Other Parameters | |

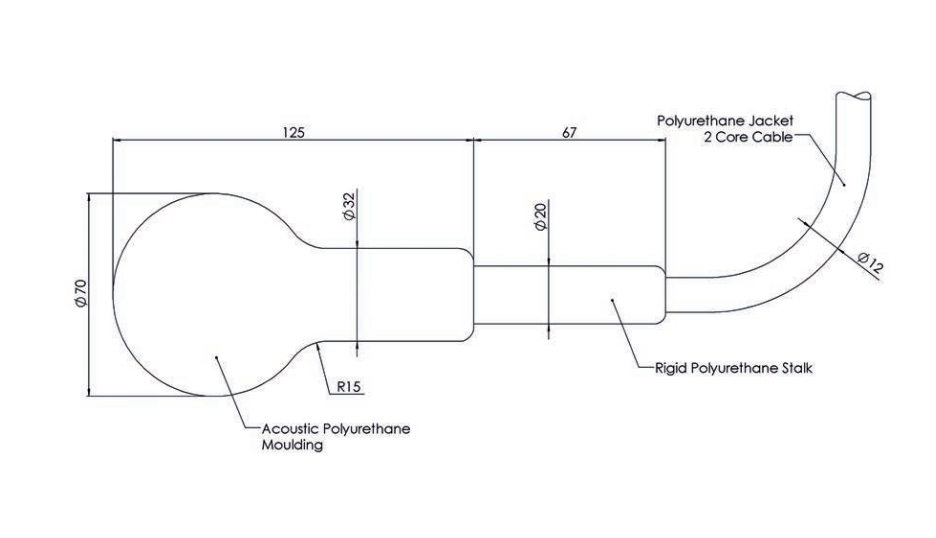

Main body size | Diameter 70mm, height 192mm |
Working water depth | 2000m |
Operating Temperature
| —5 to +40 °C
|
Storage Temperature
| -40 to +80 °C
|
Electrical interface | 5m watertight cable (standard), customizable watertight connector |

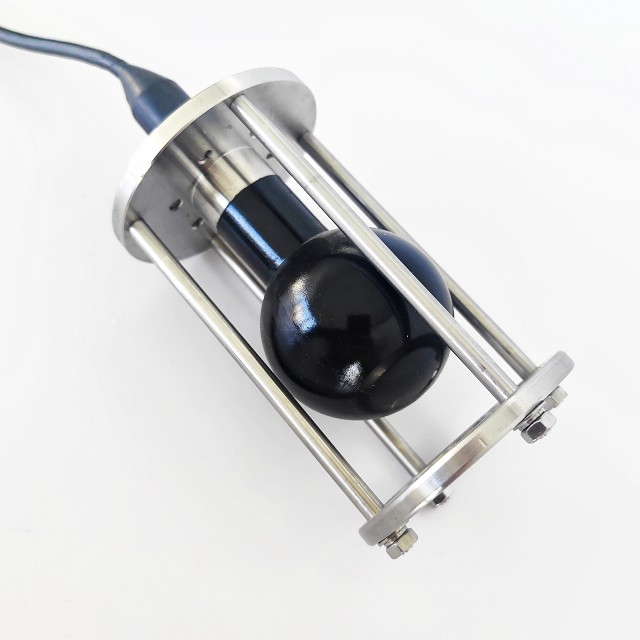

Protective frame | Yes |
.
